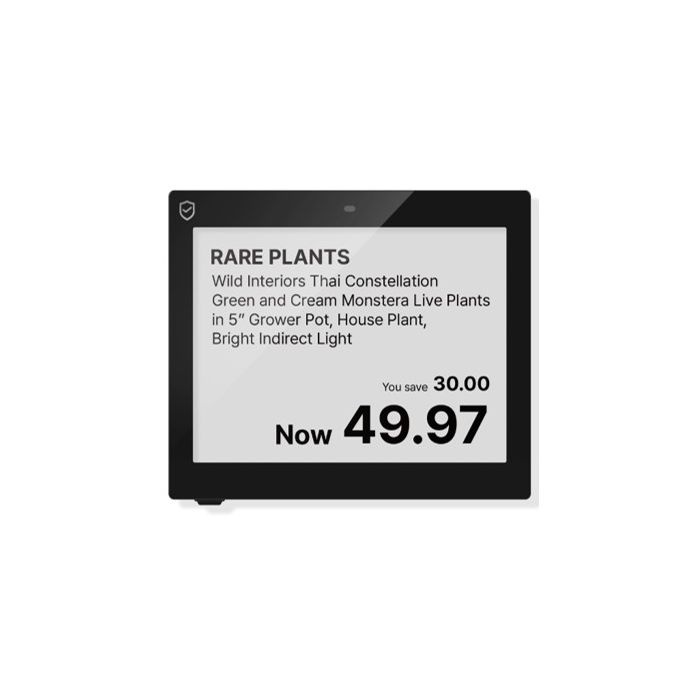

Newton Pro Extreme
The Newton Pro Extreme ESL, the most durable digital label, is engineered for extreme conditions. Operating from -20℃ to 60℃ with UV protection and an IP68 rating, it is the ideal solution for harsh environments like outdoor displays, frozen aisles, and rugged warehouses.
The Newton Pro Extreme ESL, the most durable digital label, is engineered for extreme conditions. Operating from -20℃ to 60℃ with UV protection and an IP68 rating, it is the ideal solution for harsh environments like outdoor displays, frozen aisles, and rugged warehouses.
Technical specifications
| Dimensions (WxHxD) |
85.90 × 41.30 × 10.45 (mm) 3.38 × 1.62 × 0.41 (in)
|
| Display |
Active Display Area 67.6 × 29.6 (mm) Resolution 384 x 168 pixels Pixel density 144 dpi Display technology Full Graphic E-ink Display Pixel colors BW(Black, White) Viewing angle Nearly 180˚ |
| Page capacity |
Up to 7 pages |
| Operating temperature |
-20 ~ 60°C -4 ~ 140°F |
| Battery |
Type and number CR2450 × 2 Battery lifetime Up To 10 years (2 Update/day) |
| Encryption |
128-Bit AES |
| Compliance |
FCC, IC, CE, TELEC, KC, RoHS |
| NFC |
FeliCa NFC Forum Type 3 |
| Protection from water and dust |
IP68 |
| External components |
Button 1 Buttons LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White) |
| ESL operating frequency |
2.4 Ghz |
| Wireless firmware update |
Yes |
| Dimensions (WxHxD) |
98.10 × 83.70 × 12.45 (mm) 3.86 × 3.29 × 0.49 (in)
|
| Display |
Active Display Area 84.8 × 63.6 (mm) Resolution 400 x 300 pixels Pixel density 120 dpi Display technology Full Graphic E-ink Display Pixel colors BW (Black, White) Viewing angle Nearly 180˚ |
| Page capacity |
Up to 7 pages |
| Operating temperature |
-20 ~ 60°C -4 ~ 140°F |
| Battery |
Type and number CR2450 × 2 Battery lifetime Up To 10 years (2 Update/day) |
| Encryption |
128-Bit AES |
| Compliance |
FCC, IC, CE, TELEC, KC, RoHS |
| NFC |
FeliCa NFC Forum Type 3 |
| Protection from water and dust |
IP68 |
| External components |
Button 1 Buttons LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White) |
| ESL operating frequency |
2.4 Ghz |
| Wireless firmware update |
Yes |
| Dimensions (WxHxD) |
125.00 × 182.90 × 14.85 (mm) 4.92 × 7.20 × 0.58 (in)
|
| Display |
Active Display Area 97.9 × 163.2 (mm) Resolution 480 x 800 pixels Pixel density 126 dpi Display technology Full Graphic E-ink Display Pixel colors BW (Black, White) Viewing angle Nearly 180˚ |
| Page capacity |
Up to 7 pages |
| Operating temperature |
-20 ~ 60°C -4 ~ 140°F |
| Battery |
Type and number CR2450 × 4ea(Battery Pack) Battery lifetime Up To 10 years (2 Update/day) |
| Encryption |
128-Bit AES |
| Compliance |
FCC, IC, CE, TELEC, KC, RoHS |
| NFC |
FeliCa NFC Forum Type 3 |
| Protection from water and dust |
IP68 |
| External components |
Button 1 Buttons LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White) |
| ESL operating frequency |
2.4 Ghz |
| Wireless firmware update |
Yes |
| Dimensions (WxHxD) |
192.00 × 269.10 × 15.35(mm) 7.50 × 10.60 × 0.60 (in)
|
| Display |
Active Display Area 67.6 x 29.6 mm Resolution 640 x 960 pixels Pixel density 100 dpi Display technology Full Graphic E-ink Display Pixel colors BW (Black, White) Viewing angle Nearly 180˚ |
| Page capacity |
Up to 7 pages |
| Operating temperature |
-20 ~ 60°C -4~ 140°F |
| Battery |
Type and number CR2450 × 6ea(Battery Pack) Battery lifetime Up To 10 years (2 Update/day) |
| Encryption |
128-Bit AES |
| Compliance |
FCC, IC, CE, TELEC, KC, RoHS |
| NFC |
FeliCa NFC Forum Type 3 |
| Protection from water and dust |
IP68 |
| External components |
Button 1 Buttons LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White) |
| ESL operating frequency |
2.4 Ghz |
| Wireless firmware update |
Yes |
